APC UPS

There are many different models of APC UPS however for our customer these are the three families that we most commonly use:

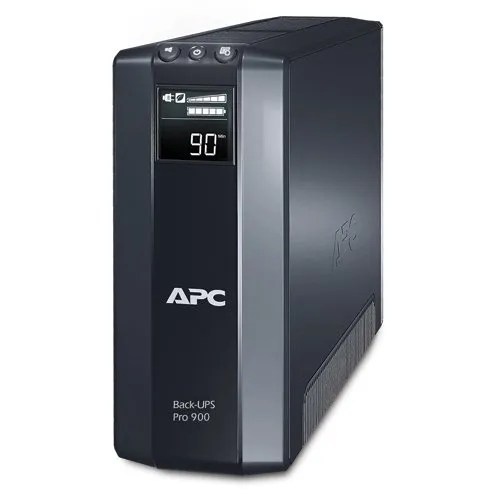

BackUPS Pro

BackUPS Pro offers Line-Interactive topology, designed for high performance computer and electronics protection and has the following features:

• Boost and Trim Automatic Voltage Regulation (AVR) gives higher application availability by correcting low and high voltage conditions without using the battery.
• Unattended shutdown ensures that files are saved and the Operating System is properly shutdown in the event of a sustained power outage.
• Ethernet protection shields hardware from damage
• Additional Surge Protected Outlets for devices that don’t need battery backup
• Automatic Self Test  Biweekly testing of all internal components, including the battery, ensures your unit is ready when you need it.
• Intelligent battery management  Maximizes battery performance, life, and reliability through intelligent, precision charging.
• Audible alarms proactively notifies you of changing UPS and utility power conditions.
• Easy Overload Recovery via a push-button circuit breaker instead of a standard fuse, eliminates the need to return the unit to the factory for service.
• Adjustable voltage sensitivity provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
• Adjustable voltage-transfer points maximises useful battery life by widening the input voltage window or tightening the output voltage regulation.
• Cold-start does not require input power. This provides temporary emergency battery power when the utility power is out.
• User replaceable batteries allows you to swap the battery yourself.
• Hot Swap Batteries allows you to change the battery safely without powering down your equipment.
• Available in 550VA, 900VA, 1200VA and 1500VA models

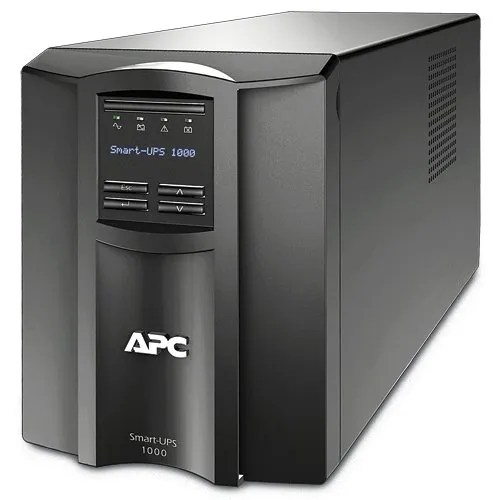

SmartUPS

APC SmartUPS offers Line-Interactive topology. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices and has the following features:

• Boost and Trim Automatic Voltage Regulation (AVR) gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
• Intelligent battery management maximizes battery performance, life, and reliability through intelligent, precision charging.
• Power conditioning protects connected loads from surges, spikes, lightning, and other power disturbances.
• Temperature-compensated battery charging prolongs battery life by regulating the charge voltage according to battery temperature.
• Automatic restart of loads after UPS shutdown automatically starts up the connected equipment upon the return of utility power.
• Automatic self-test periodically self-tests to ensure early detection of a battery that needs to be replaced.
• Disconnected battery notification warns when a battery is not available to provide backup power.
• Network management provides remote management of the UPS over the network.
• Audible alarms actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
• LED status indicators quickly show unit and power status.
• Serial Connectivity provides management of the UPS via a serial port.
• USB connectivity provides management of the UPS via a USB port.
• User-replaceable batteries allows a trained user to perform upgrades and replacements of the batteries.
• Hot-swappable batteries ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
• Predictive failure notification provides early-warning fault analysis ensuring proactive component replacement.
• Resettable circuit breakers enables a quick recovery from overload events.
• Battery failure notification provides early-warning fault analysis on batteries enabling timely preventive maintenance
• Adjustable voltage-transfer points maximises useful battery life by widening the input voltage window or tightening the output voltage regulation.
• Adjustable voltage sensitivity provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
• Available in tower and rack mount 750VA, 1000VA, 1500VA, 2200VA 3000VA and 5000VA and extended run tower and rack mount 750VA, 1000VA, 1500VA, 2200V and 3000VA.

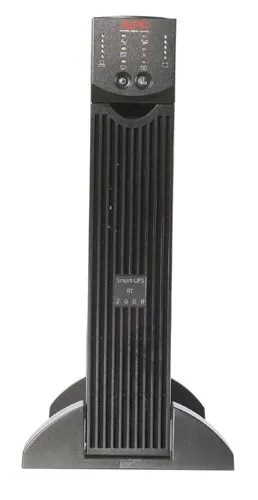

SmartUPS Online

SmartUPS Online offers double-conversion topology, on-line power protection with scalable runtime and has the following features:

• Automatic internal bypass supplies utility power to the connected loads in the event of a UPS overload condition or fault.
• Scalable runtime allows additional run time to be quickly added as needed.
• Intelligent battery management maximises battery performance, life, and reliability through intelligent, precision charging.
• Hot-swappable batteries ensures clean, uninterrupted power to protected equipment while batteries are being replaced.
• Automatic restart of loads after UPS shutdown automatically starts up the connected equipment upon the return of utility power.
• Temperature-compensated battery charging prolongs battery life by regulating the charge voltage according to battery temperature.
• Network management provides remote management of the UPS over the network.
• InfraStruXure Manager Compatibility enables centralised management via the APC InfraStruXure Manager.
• LED status indicators quickly show unit and power status.
• Serial Connectivity provides management of the UPS via a serial port.
• Rack/Tower convertible protects the initial investment in the UPS when migrating from tower to rack-mount environment.
• User-replaceable batteries allows a trained user to perform upgrades and replacements of the batteries.
• Automatic self-test periodically self-tests to ensure early detection of a battery that needs to be replaced.
• Predicitive failure notification provides early-warning fault analysis ensuring proactive component replacement.
• Disconnected battery notification warns when a battery is not available to provide backup power.
• Audible alarms provide notification of changing utility power and UPS conditions
• Frequency and voltage regulation gives higher application availability by correcting poor frequency and voltage conditions without using the battery.
• Power conditioning protects connected loads from surges, spikes, lightning, and other power disturbances.
• Input power factor correction minimises installation costs by enabling the use of smaller generators and cabling.
• Generator compatibility ensures clean, uninterrupted power to protected equipment when generator power is used.
• Cold-start capability provides temporary battery power when the utility power is out.
• Resettable circuit breaker provides easy recovery from overloads.
• Available in tower and rack mount extended run 1kVA, 2.2kVA, 3kVA, 5kVA, 6kVA, 8kVA, 10kVA, 15kVA and 20kVA.

Contact us to see if an APC UPS is right for your needs.
